Product Details : Bulkhead Union 1/4" Tube Push to Connect - Brass

Part No: P10.1/4
Product Category: Push to Connect
Format: Standard
Style: Bulkhead Union
Number Of Exits: 1
Type: Tube Fitting
O-Ring: No O-Ring
Material(s): Nickel Plated Brass
Fluid Type: Air (no other gases or liquids)
Connection 1: Push to Connect 1/4"
Connection 2: Push to Connect 1/4"

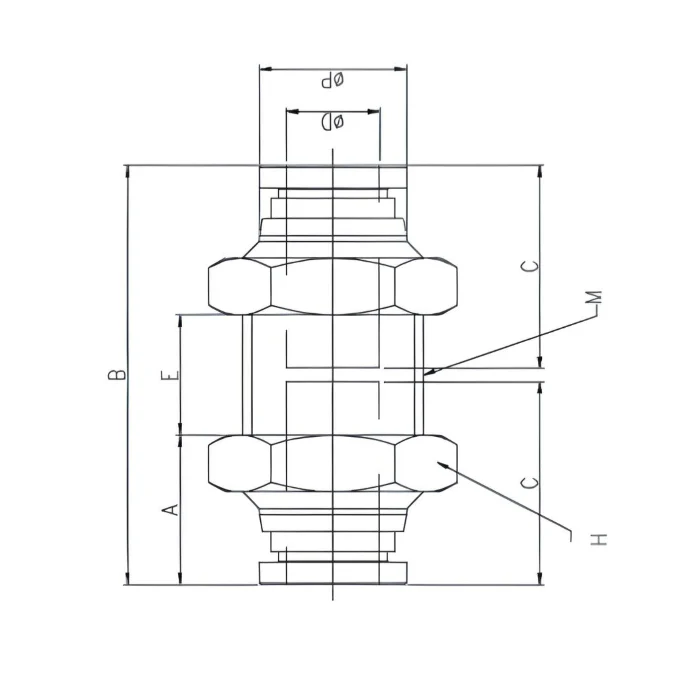

øD: 1/4"
øP: 12mm
M: UNF9/16
A: 12.9mm
B: 35.7mm
C: 17mm
E: 9.9mm
H: 11/16"
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
Temperature Range: 32-176°F /

Standard Push To Connect Fittings

Bulkhead Union 1/4" Tube Push to Connect - Brass
